Vortex Street¤
Source
- Scripts:
vortex_street_torus_sample.py(cylinder on a ring grid),vortex_street_sample.pyandvortex_street_refined_sample.py(square obstacle in a channel) - Run:
python vortex_street_torus_sample.pyfrom the repository root
Flow past a bluff body is the textbook example of unsteady separated flow. Beyond the physics, these samples show the multi-block features of PICT: curvilinear blocks, block connections, inflow and advective outflow boundaries, and moving walls.

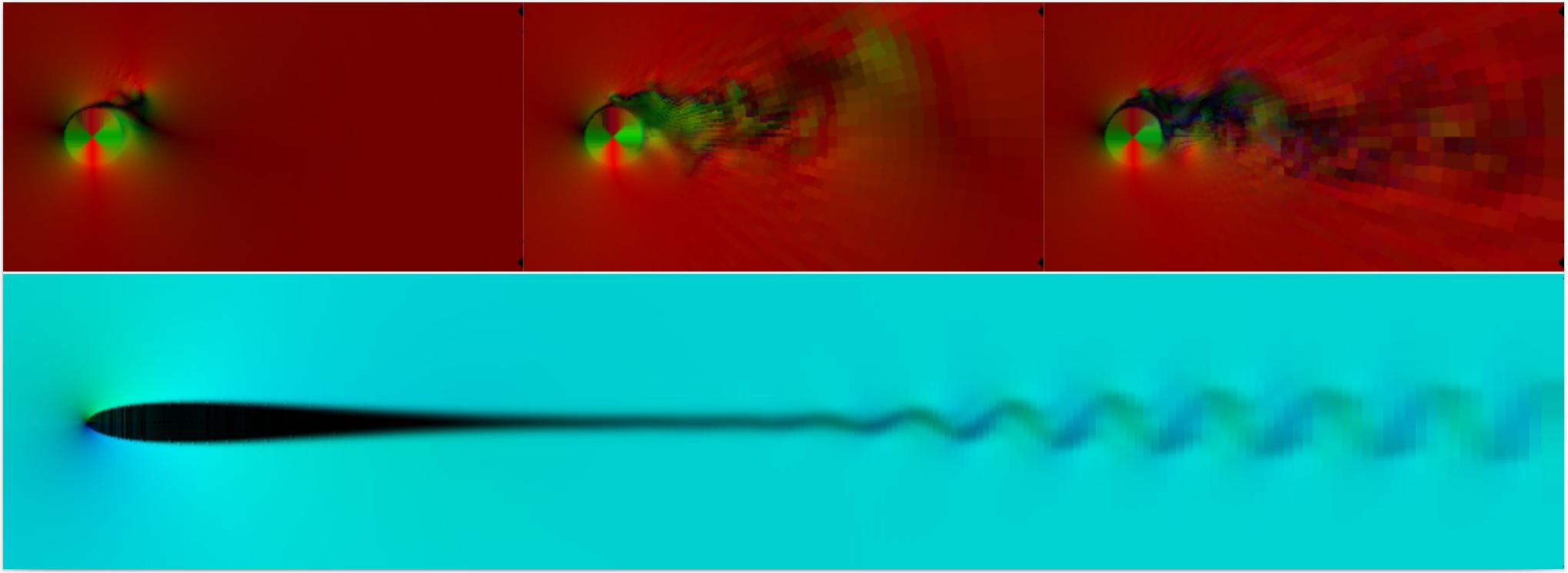

vortex_street_torus_sample.py (non-rotating cylinder, 48 cells per quadrant). Color shows vorticity (blue: clockwise, red: counter-clockwise). Rendered for this website.The ring grid around a cylinder¤
vortex_street_torus_sample.py builds a disk-shaped domain around the cylinder from four quarter-ring blocks. In each block, x runs along the angle and y runs radially. The y-resolution is chosen such that cells are approximately square, so they grow with the radius.
def make4BlockTorus_VortexStreet(x, r1=0.5, r2=8,
z:int=0, z_size=1, z_closed=False,
rot_vel=0, obs_vel_z=0, vel_in=1,
scaling=None, rotation_distortion_max_angle=None, z_sine_scale=None,
viscosity=1e-3, dtype=torch.float32):
dims = 3 if z > 0 else 2
domain = PISOtorch.Domain(dims, torch.tensor([viscosity], dtype=dtype, device=cpu_device), name="DomainTorusParts",
dtype=dtype, device=cuda_device, passiveScalarChannels=0)
# four quarter rings, x along the angle, y from the inner radius r1 to the outer radius r2
torus_coords = [shapes.make_torus_2D(x, r1=r1, r2=r2, start_angle=a, angle=-90, dtype=dtype)
for a in (90, 0, -90, -180)]
if dims == 3: # extrude the rings in z
torus_coords = [shapes.extrude_grid_z(grid, z, end_z=z_size, weights_z=None, exp_base=1.05)
for grid in torus_coords]
for t_idx, coords in enumerate(torus_coords):
block = domain.CreateBlock(vertexCoordinates=coords.to(cuda_device).contiguous(), name="Torus%d" % t_idx)
block.CloseAllBoundaries()
torus_blocks = domain.getBlocks()
torus_tr, torus_br, torus_bl, torus_tl = torus_blocks
# close the ring: +x of each quarter connects to -x of the next one
axes = ["-y", "-z"] if dims == 3 else ["-y"]
for i in range(4):
torus_blocks[i].ConnectBlock("+x", torus_blocks[(i + 1) % 4], "-x", *axes)
...
(Abridged: the full function can additionally scale the grid and distort it, by a rotation around the center or a z-sine displacement, to test the solver on worse meshes.)
The inner boundary of the ring (-y) is the cylinder wall. The outer boundary (+y) is the inflow on the left half and the outflow on the right half:
for block in torus_blocks: # initialize with the free-stream velocity
block.velocity[:, 0, ...] = vel_in
vel_in = torch.tensor([[vel_in] + [0] * (dims - 1)], dtype=dtype, device=cuda_device)
torus_tl.getBoundary("+y").setVelocity(vel_in) # inflow on the left
torus_bl.getBoundary("+y").setVelocity(vel_in)
out_bounds = [torus_tr.getBoundary("+y"), torus_br.getBoundary("+y")] # outflow on the right
for out_bound in out_bounds:
out_bound.setVelocity(vel_in)
out_bound.makeVelocityVarying()
PISOtorch_simulation.balance_boundary_fluxes(domain, out_bounds)
# advect the outflow values before every step
prep_fn = lambda domain, time_step, **kwargs: PISOtorch_simulation.update_advective_boundaries(
domain, out_bounds, vel_in, time_step.cuda())
domain.PrepareSolve()
return domain, {"PRE": prep_fn}, ...
A rotating cylinder is set up by giving the inner boundary a tangential velocity per boundary cell. The sample's default run is a cylinder at Re = 1000 that rotates with a surface speed of 2:
if rot_vel != 0:
# tangential velocity for every boundary cell around the circumference
bound_vel = ... # shape [1, dims, 1, 4*x], split into one part per block
for block, bound_vel_part in zip(torus_blocks, torch.split(bound_vel, x, dim=-1)):
block.getBoundary("-y").setVelocity(bound_vel_part.contiguous())
The simulation projects the initial field onto a divergence-free field first and then runs with adaptive time steps:
sim = PISOtorch_simulation.Simulation(domain=domain, prep_fn=prep_fn, output_resampling_shape=resample_shape,
substeps="ADAPTIVE", time_step=0.25, corrector_steps=2, advection_tol=1e-6, pressure_tol=1e-6,
advect_non_ortho_steps=2, pressure_non_ortho_steps=4, pressure_return_best_result=True,
velocity_corrector="FD", non_orthogonal=True, log_interval=1, log_dir=log_dir)
sim.preconditionBiCG = False
sim.BiCG_precondition_fallback = True
sim.make_divergence_free()
sim.run(200)
With z > 0, the rings are extruded to 3D, periodic in z by default or closed with z_closed=True. The cylinder can then also slide along its axis (obs_vel_z).
Square obstacle in a channel¤
vortex_street_sample.py builds a channel around a square obstacle from eight blocks. They are arranged as a ring, and the missing center block becomes the obstacle:
Btl | Btm | Btr t = top, m = middle, b = bottom
----+-----+---- l = left, r = right
Bml | obs | Bmr the obstacle faces of Btm, Bml, Bmr, Bbm are closed (walls)
----+-----+----
Bbl | Bbm | Bbr
The top and bottom faces are either connected to each other, making the channel periodic in y, or closed as walls. The inflow on the left can be uniform or Gaussian, and a passive scalar enters through the inflow section in line with the obstacle. The obstacle walls use Neumann conditions for the scalar. vortex_street_refined_sample.py builds the same topology from graded grids that are refined towards the obstacle (see Grids). The learned vortex-street corrector of the paper also uses a square obstacle in a channel; its exact geometry and grid are given in the paper's appendix, see also Results.
