Turbulent Channel Flow at Re_τ = 180

Source

• Script: turbulent_channel_flow_sample.py
• Setup: adapted from the code of FluidGym (Becktepe et al., ICML 2026), where it is the uncontrolled flow of the channel flow environments
• Run: python turbulent_channel_flow_sample.py from the repository root (needs the noise extension for the initial condition)

Fully developed turbulence between two parallel walls, in a small 3D channel of π × 2 × π/2 with 64³ cells. The flow is periodic in the stream-wise and span-wise directions and is driven by a forcing that balances the wall shear stress. The channel flow of the paper, at Re_τ = 550 with turbulence statistics and a learned SGS model, is described in Turbulent Channel Flow SGS Model.

3D velocity fluctuationsNear-wall streaks

Stream-wise velocity fluctuations u′ in the whole channel (flow from left to right), scaled by their rms value at each height (blue: slower, red: faster than the mean). Values within ±1 rms are transparent. 100 time units (about 4 eddy turnover times) after the 400 iterations of the sample. Simulated with PICT, rendered for this website with vedo.

The same run in the x–z plane at y⁺ ≈ 14 above the lower wall: stream-wise velocity fluctuations in wall units (±6.5 u_τ). The elongated low- and high-speed streaks are characteristic of wall turbulence. Simulated with PICT and rendered for this website.

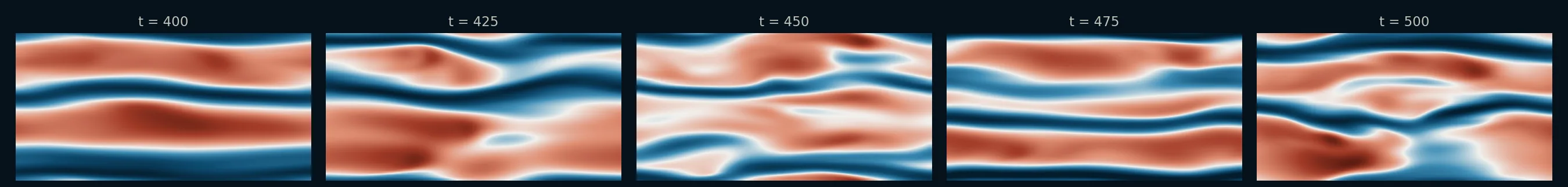

Near-wall streaks at t = 400, 425, 450, 475 and 500.

Setup (default run of the sample)

• Channel of π × 2 × π/2 (stream-wise × wall-normal × span-wise), walls at y = ±1, periodic in x and z
• One block of 64 × 64 × 64 cells, refined towards both walls
• Target friction Reynolds number Re_τ = 180, with the center-line velocity and the half-height as units
• Initial condition: Reichardt's mean profile with curl noise
• 400 iterations of 1.0 time units (ca. 17 eddy turnover times), adaptive sub-steps with a CFL number of 0.1. According to the script, the flow becomes turbulent after ca. 8 eddy turnover times.

Grid and initial condition

make_y_weights places the vertices between the walls so that the cell size grows by a factor of 1.2^N/2 between neighbors (N = refinement_strength, 1 by default). The 2D grid is then extruded in z:

    y_weights = make_y_weights(N=refinement_strength, ny_half=(res_y//2)*refinement_strength)
    corners = [(-length/2, -delta), (length/2, -delta), (-length/2, delta), (length/2, delta)]
    grid = shapes.generate_grid_vertices_2D([len(y_weights), res_x+1], corners, None, x_weights=y_weights, dtype=dtype)
    grid = shapes.extrude_grid_z(grid, res_z, start_z=-depth/2, end_z=depth/2)

The flow parameters follow from Re_τ: TCF_tools.Re_wall_to_cl gives the center-line Reynolds number, which sets the viscosity and the friction velocity. A single block is closed in y; the other directions keep the default periodic boundaries. The initial velocity is Reichardt's law of the wall plus curl noise from the SimplexNoiseVariations extension:

    dims = 3
    delta = 1
    Re_center = TCF_tools.Re_wall_to_cl(Re_wall)
    u_wall = Re_wall/Re_center # friction velocity
    viscosity = delta/Re_center

    grid = make_channel_grid(res_x, res_y, res_z, length, depth, delta=delta, refinement_strength=refinement_strength, dtype=dtype)

    viscosity = torch.ones([1], dtype=dtype, device=cpu_device)*viscosity
    domain = PISOtorch.Domain(dims, viscosity, passiveScalarChannels=0, name="DomainChannel", device=cuda_device, dtype=dtype)

    # create block from the mesh on the domain (missing settings, fields and transformation metrics are created automatically)
    block = domain.CreateBlock(vertexCoordinates=grid.to(cuda_device).contiguous(), name="BlockChannel")
    # closing -y also closes +y as they are connected via the default periodic boundary
    block.CloseBoundary("-y")

    # initial velocity: turbulent mean profile in x
    vel_init = make_reichardt_profile(domain, u_wall)
    vel_init = vel_init.view(1,1,1,res_y,1).expand(-1,-1,res_z,-1,res_x)
    vel_init = torch.cat([vel_init] + [torch.zeros_like(vel_init)]*(dims-1), dim=1)
    if init_with_noise:
        import SimplexNoiseVariations
        curl_noise = SimplexNoiseVariations.GenerateSimplexNoiseVariation([res_x,res_y,res_z], cuda_device, [2/res_x,2/res_y,2/res_z], [0]*3,
            SimplexNoiseVariations.NoiseVariation.CURL)
        curl_noise *= 0.5*vel_init/torch.max(torch.linalg.vector_norm(curl_noise, dim=1))
        vel_init = vel_init + curl_noise
    block.setVelocity(vel_init.to(dtype).contiguous())

Without the noise extension, pass init_with_noise=False. The flow then starts from the unperturbed mean profile.

Driving the flow

A periodic channel needs a force to replace the pressure drop of a real channel. The sample computes the mean wall shear stress from the mean velocity of the first cells next to the walls, and sets it as a uniform stream-wise velocity source before every step. The forcing thus balances the friction at the walls, which keeps the mass flow rate constant according to the script (see Velocity sources):

def make_dynamic_forcing_fn(domain, delta:float=1):
    # A stream-wise velocity source that balances the mean shear stress at the walls, set before every step.
    # Returns the callback and a function to compute the mean wall shear stress.
    dims = domain.getSpatialDims()
    pos_y = torch.mean(domain.getBlock(0).getCellCoordinates()[0,1], dim=(0,2))
    wall_distance = (delta + pos_y[0].item(), delta - pos_y[-1].item()) # distance of the first cell centers from the walls

    def get_wall_shear_stress(domain):
        block = domain.getBlock(0)
        mean_vel_u = torch.mean(block.velocity[0,0], dim=(0,2)) # mean over x and z
        viscosity = domain.viscosity.to(domain.getDevice())
        return (viscosity*mean_vel_u[0]/wall_distance[0] + viscosity*mean_vel_u[-1]/wall_distance[1])*0.5

    def dynamic_forcing_fn(domain, **kwargs):
        G = torch.cat([get_wall_shear_stress(domain).reshape([1,1]), torch.zeros([1,dims-1], dtype=domain.getDtype(), device=domain.getDevice())], dim=1) # NC
        domain.getBlock(0).setVelocitySource(G)

    return dynamic_forcing_fn, get_wall_shear_stress

The same wall shear stress gives the current friction Reynolds number, which the sample logs after every iteration to show whether the flow is turbulent:

    def log_fn(domain, it, **kwargs):
        # the friction Reynolds number from the current wall shear stress shows if the flow is turbulent
        LOG.info("Re_tau at %.02f ETT: %.01f", TCF_tools.t_to_ETT(it*time_step, u_wall), np.sqrt(get_wall_shear_stress(domain).item())/viscosity)

In the run for the video, this value stayed between 173 and 192 (mean 183).

Running the simulation

The advection uses BiCGStab with a tolerance of 10⁻⁶. The adaptive time stepping uses a small CFL number: according to the script, higher values can result in a laminar flow. Before the projection of the initial field, the sample calls CopyVelocityResultFromBlocks, which copies the block velocities into the domain's global velocity result buffer:

    sim = PISOtorch_simulation.Simulation(domain=domain, prep_fn=prep_fn,
            substeps="ADAPTIVE", adaptive_CFL=adaptive_CFL, time_step=time_step, corrector_steps=2,
            advection_use_BiCG=True, advection_tol=1e-6, pressure_tol=1e-6,
            advect_non_ortho_steps=1, pressure_non_ortho_steps=1, pressure_return_best_result=True,
            velocity_corrector="FD", non_orthogonal=True,
            log_interval=1, norm_vel=True, log_fn=log_fn,
            output_resampling_shape=resample_shape, output_resampling_fill_max_steps=resample_fill_steps,
            log_dir=log_dir, save_domain_name="domain",
            stop_fn=STOP_FN)

    sim.preconditionBiCG = False
    sim.BiCG_precondition_fallback = True

    if not load_domain_path:
        # make the initial velocity divergence-free
        PISOtorch.CopyVelocityResultFromBlocks(domain)
        sim.make_divergence_free()

The transition to turbulence takes a while, so a run can continue from the saved domain of an earlier one with load_domain_path. The script also contains a commented run of the large channel (2π × 2 × π, 128 × 64 × 128 cells), as in the large channel flow environments of FluidGym:

    # small channel (pi x 2 x pi/2) at Re_tau=180, 400 iterations are ca. 17 ETT
    turbulent_channel_flow_sample(run_dir, name="Re180_small", res_x=64, res_y=64, res_z=64, length=np.pi, depth=np.pi/2, Re_wall=180,
        iterations=400, time_step=1.0, dp=False, STOP_FN=stop_handler)

    # continue a previous simulation, e.g. after a warm-up
    #turbulent_channel_flow_sample(run_dir, name="Re180_small_continued", Re_wall=180, load_domain_path="./test_runs/<run_dir>/0000_channel_flow_Re180_small/domain",
    #    iterations=200, time_step=1.0, dp=False, STOP_FN=stop_handler)

    # large channel (2pi x 2 x pi) at Re_tau=180, as in the large channel flow environments of FluidGym
    #turbulent_channel_flow_sample(run_dir, name="Re180_large", res_x=128, res_y=64, res_z=128, length=2*np.pi, depth=np.pi, Re_wall=180,
    #    iterations=400, time_step=1.0, dp=False, STOP_FN=stop_handler)

For turbulence statistics and the validation of PICT on turbulent channel flow, see Turbulent Channel Flow SGS Model and the Validation page.

How the videos were made

The sample ran its default 400 iterations (t = 0 to 400). scripts/sim_flow_examples.py tcf then continued from its saved final domain with the same setup and solver settings, but with an output time step of 0.25 for a smooth video: 400 iterations, t = 400 to 500. After every iteration, a log callback recorded the stream-wise velocity in an x–z plane near the wall and in the whole channel. scripts/render_flow_examples.py renders the plane. scripts/render_tcf3d.py interpolates the 3D field to a uniform grid and ray-casts it with vedo: the color and the opacity show u′ divided by its rms value at each height over the run.
